Brand: MinelabSKU: 3228-0101Price: Contact us for pricing

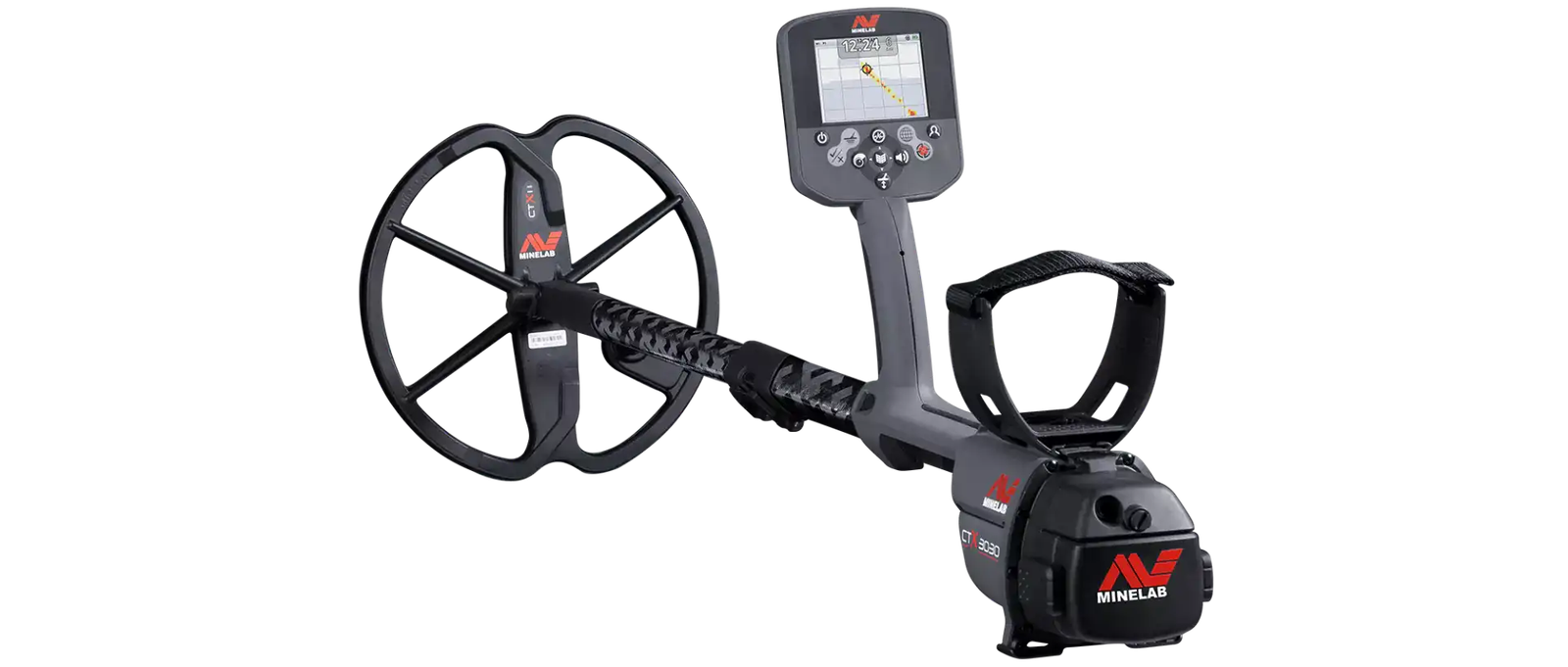

CTX 3030 is a complete professional metal detector, combining FBS 2 technology that transmits multiple frequencies from 1.5 to 100 kHz with advanced digital coil-to-control-box communication, and Smartfind 2 discrimination that displays ferrous and conductivity values in clear colour on screen.
The built-in GPSi system logs GeoTrails, WayPoints and FindPoints with high accuracy, letting you retrace your path and revisit promising locations, with data transfer to Google Maps via XChange 2 software.
Wi-Stream wireless audio through the included WM 10 module delivers under 10ms latency, and Koss UR30 headphones are included too. The detector is fully waterproof to 3 metres (10 ft), with an ergonomic design that shifts battery weight behind the armrest.
Five preset modes suited to different environments, with 20 customisable discrimination patterns (2 per mode).
Displays ferrous (Fe) and conductivity (Co) values in colour on screen, with resolution up to 1,750 discrimination patterns (35×50).
Built-in GPS logs GeoTrails, WayPoints and FindPoints, letting you retrace your path and return to promising spots via XChange 2 software.
Identifies multiple targets at once (iron-coin and ground-coin separation) for greater accuracy in crowded areas.
| Technology | Multi-frequency FBS 2 with digital coil-to-control-box link |
|---|---|
| Frequency Range | 1.5 to 100 kHz |
| Discrimination | Smartfind 2: 35 ferrous × 50 conductivity = 1,750 patterns |
| Noise Cancel | Automatic and manual (11 channels) |
| Sensitivity | Automatic and manual (130 levels) |
| Target Tones | Customisable: 1, 2 ferrous, 2 conductivity, 4 ferrous, 4 conductivity, 35 ferrous, 50 conductivity |
| Display | Full-colour LCD with backlight, adjustable brightness (1-10) |
| Wireless Audio | WM 10 wireless module (included), under 10ms latency |
| Included Headphones | Koss UR30 (100 ohm) |
| Standard Search Coil | CTX 11 round 11-inch Double-D, waterproof |
| Shaft Length | 94 to 140.5 cm (37 to 55.3 in) |
| Weight | 2.36 kg including battery |
| Battery | Rechargeable lithium-ion with fast charger |
| Waterproof Rating | Fully submersible to 3 metres (10 ft) |
| Languages | 9 selectable languages |
| PC Connectivity | XChange 2 compatible via USB |
| Warranty | Official warranty on detector and coil |
Minelab CTX 3030 ships with everything you need to start detecting right away.
Main control box with colour display
CTX 11 round 11-inch Double-D waterproof search coil
Koss UR30 headphones
WM 10 wireless audio module
Lithium-ion battery with fast charger
Coil skid plate
User manual
Compare Minelab CTX 3030 with related Minelab models.
| Model | CTX 3030 / Equinox 900 / Excalibur II |
|---|---|
| Technology | FBS 2 (1.5-100 kHz) / Simultaneous Multi-IQ / BBS (17 frequencies) |
| Display | Full-colour LCD + GPS / Monochrome LCD / None (analogue control) |
| Discrimination Segments | 1,750 patterns (35×50) / 119 / No digital ID |
| Waterproofing | Fully submersible 3m / Fully submersible 5m / Fully submersible 60m |
| Wireless Audio | WM 10 included / ML-85 included / None |
| Best Suited For | Pros wanting top discrimination and GPS / Versatility, light weight and gold / Deep underwater diving |
