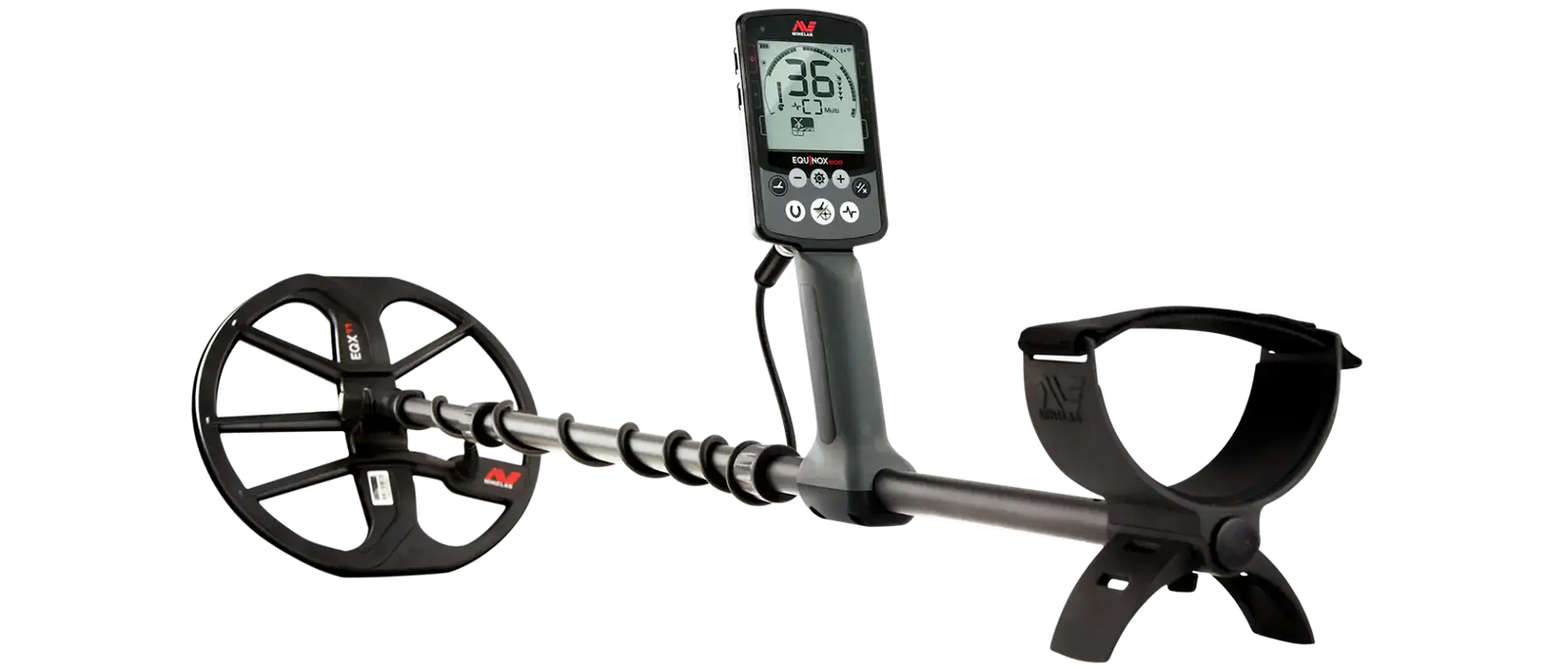

Brand: MinelabSKU: EQUINOX-800Price: Contact us for pricing
Equinox 800 is a complete professional detector combining simultaneous Multi-IQ with a dedicated gold mode, making it suitable for coins, relics and jewellery as well as gold prospecting in mineralised ground.
It offers 6 single frequencies (4, 5, 10, 15, 20, 40 kHz) for fine-tuning to the target type, with adjustable recovery speed from 1 to 8 for excellent target separation in trash-dense ground.
The detector is fully waterproof to 3 metres (10 ft), and comes with low-latency aptX Bluetooth headphones and a WM 08 wireless module, plus a variable-intensity backlit LCD screen.
Ideal for parks and busy public areas full of trash, with two customisable saved profiles.
Designed for farmland and historical sites, balancing depth and discrimination.
Optimised for wet, salty sand using Multi-IQ to reduce false signals.
Extra sensitivity for mineralised ground at 20 and 40 kHz to pick up the smallest gold pieces.
| Technology | Simultaneous multi-frequency Multi-IQ |
|---|---|
| Single Frequencies | 4, 5, 10, 15, 20, 40 kHz |
| Search Modes | Park, Field, Gold, Beach (8 profiles) |
| Noise Cancel | Automatic / Manual (-9 to 9) |
| Ground Balance | Automatic / Manual |
| Sensitivity | 1 to 25 |
| Wireless Audio | Low-latency aptX Bluetooth headphones (included) + WM 08 wireless module (included) |
| Volume | 0 to 25 |
| Target Tones | 1, 2, 5, 50 tones |
| Discrimination Segments | 50 segments |
| Target ID | Ferrous: -9 to 0 / Non-ferrous: 1 to 40 |
| Recovery Speed | 1 to 8 |
| Depth Indicator | 5 levels |
| Shaft Length | 144 cm (56.7 in) |
| Weight | 1.34 kg (2.96 lb) |
| Standard Search Coil | EQX11 round 11-inch Double-D with cover |
| Display | Monochrome LCD with variable backlight |
| Battery | Internal lithium-ion, up to 12 hours runtime |
| Waterproof Rating | Fully submersible to 3 metres (10 ft) |
| Upgrade | Upgradeable via USB (Windows and Mac) |
| Warranty | Official warranty on detector and coil |
Minelab Equinox 800 ships with everything you need to start detecting right away.
Main control box
EQX11 round 11-inch Double-D coil with cover
Low-latency aptX Bluetooth headphones
WM 08 wireless audio module
Magnetic USB charging cable
Multi-language screen protectors
User manual
Compare Minelab Equinox 800 with related Minelab models.
| Model | Equinox 800 / Equinox 600 / Equinox 900 |
|---|---|
| Search Modes | Park, Field, Gold, Beach (4 modes) / Park, Field, Beach (3 modes) / Park, Field, Gold, Beach (4 modes) |
| Discrimination Segments | 50 / 50 / 119 |
| Single Frequencies | 4-40 kHz (6 frequencies) / 5-15 kHz (3 frequencies) / 4-40 kHz (6 frequencies) |
| Headphones | Bluetooth + WM 08 / Wired / ML-85 wireless |
| Waterproofing | Fully submersible 3m / Fully submersible 3m / Fully submersible 5m |
| Best Suited For | Intermediate to advanced use plus gold mode / Serious beginners / Pro detectorists and gold |
