Brand: MinelabSKU: VANQUISH-560Price: Contact us for pricing

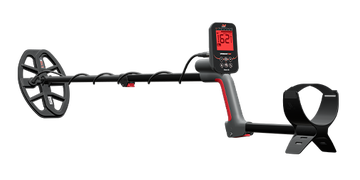

Vanquish 560 represents the top standard in the Vanquish 60 line, with greater power, accuracy and control. It relies on Multi-IQ technology to detect across several frequencies at once, for precise target response and effective recovery across changing ground.
The V12X coil increases ground coverage and sensitivity, while 4 iron-bias levels, 5 target tones and in-handle vibration give you better support isolating valuable targets. The detector is fully waterproof to 5 metres (IP68), light and compact, ready for any terrain.
The monochrome red LED screen gives better visibility in low light, with low-latency Bluetooth LE audio and up to 10 hours of battery life — a professional detecting tool with intuitive operation and sharp response.
Ideal for parks and busy public areas full of trash.
Designed for farmland and historical sites, balancing depth and discrimination.
Suited to wet and dry sand thanks to full waterproofing to 5 metres.
Save your preferred settings for quick access at any time.
| Technology | Simultaneous multi-frequency Multi-IQ |
|---|---|
| Search Modes | Park, Field, Beach, custom User Profile (4) |
| Pinpoint Mode | Yes |
| Noise Cancel | Automatic |
| Sensitivity | 10 levels |
| Volume | 10 levels (for general audio and iron-tone response) |
| Target Tones | 5 tones for finer audio separation |
| Discrimination Segments | 30 segments |
| Iron Bias | 4 levels |
| Wireless Audio | Low-latency Bluetooth LE (LC3) + wired headphones included |
| Vibration | In-handle vibration for noisy environments |
| Display | Monochrome red LED with backlight + built-in flashlight |
| Standard Search Coil | V12X elliptical 12×9-inch Double-D, high coverage |
| Length | Extended: 142 cm (56 in) / Folded: 79 cm (31 in) |
| Weight | 1.26 kg |
| Battery | Internal lithium-ion, up to 10 hours (magnetic USB-C charging) |
| Waterproof Rating | Fully waterproof to 5 metres (IP68) |
| Warranty | 3 years on detector and coil |
Minelab Vanquish 560 ships with everything you need to start detecting right away.
Main control box
V12X elliptical 12×9-inch Double-D search coil
Wired headphones included
Magnetic USB-C charging cable
Removable armrest with strap
Quick-start guide
Compare Minelab Vanquish 560 with related Minelab models.
| Model | Vanquish 560 / Vanquish 460 / Vanquish 560 Pro Pack |
|---|---|
| Included Coil | V12X (12×9 in) only / V10X (10×7 in) / V12X and V8X together |
| Discrimination Segments | 30 / 30 / 30 |
| Iron Bias | 4 levels / 3 levels / 4 levels |
| Target Tones | 5 tones / 3 tones / 5 tones |
| Headphones | Wired + Bluetooth LE / Wired + Bluetooth LE / ML60 wireless Bluetooth LE included |
| Best Suited For | Top performance with a single coil for wide coverage / Balance of simplicity and customisation / Serious hunters wanting both coverage and accuracy |
